| Items | Specifications |

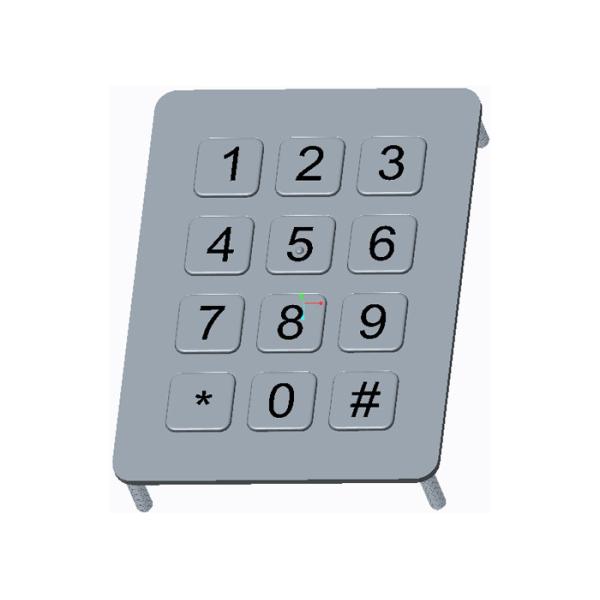

| Product Description | - Rugged stainless steel, water-proof, vandal-proof, panel-mount keypad with 12 flat keys
|
| Application | -All kinds of kiosks such as shopping mall kiosk,check-in kiosk,printing kiosk,ticket kiosk,cash kiosk,vending kiosk,gaming kiosk etc -Workstations or machines in factories -Access control panel -Some special locations like toll gate,gas station,airport,seaport,underground mine etc |
| Key Features | - Small and cute design - 12 flat keys,crispy tactile feedback,all keys in the same size - Keys in 3x4 matrix - Exposed parts(front panel and keys) made of stainless steel,high resistance against destruction,rust etc - Chemically-etched characters and legends make it more durable against wearness or long use - Panelmount from the front
- Built to operate in harsh environments - Made of stainless steel,high resistance against vandalism,meet IK47 standard
- Dust-proof and liquid-proof, meet IP65 requirement
- PS/2 or USB or PIN interface for option
- Layout customable according to customer’s request |
| Material | - Front panel & Keys: Brushed stainless steel
- Back panel: Aluminum alloy |
| Electrical Data | - Power supply voltage: DC 5 V ± 5%
- Current rating: 20 mA
- Interface: USB or PS2
- EMC compliant.
Emission: EN 50081-1
Immunity: EN 50082-1
- FCC: Part 15, class B
- Safety: EN 60950, CE compliant |
| Environmental Characteristics | - Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6 |
| Mechanical Data | - Actuation force for key:150±15g
- Key travel:0.45mm
- Lifetime (cycles): Min 5, 000, 000 actuations
- Sealing protection: IP65/NEMA4X from the front
- Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
- Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4 |
| Compatible Operation System | - PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10 |
| Reliability | -MTBF:>20,000 hours -MTTR:<30 minutes |
| Certification | |
| Dimension | - Front panel: 60.00 x 80.00mm(W x H)
|
| Weight | |
